Frogulator Game Boy Color/Pocket DC Regulator
Frogulator Game Boy Color/Pocket DC Regulator
Couldn't load pickup availability

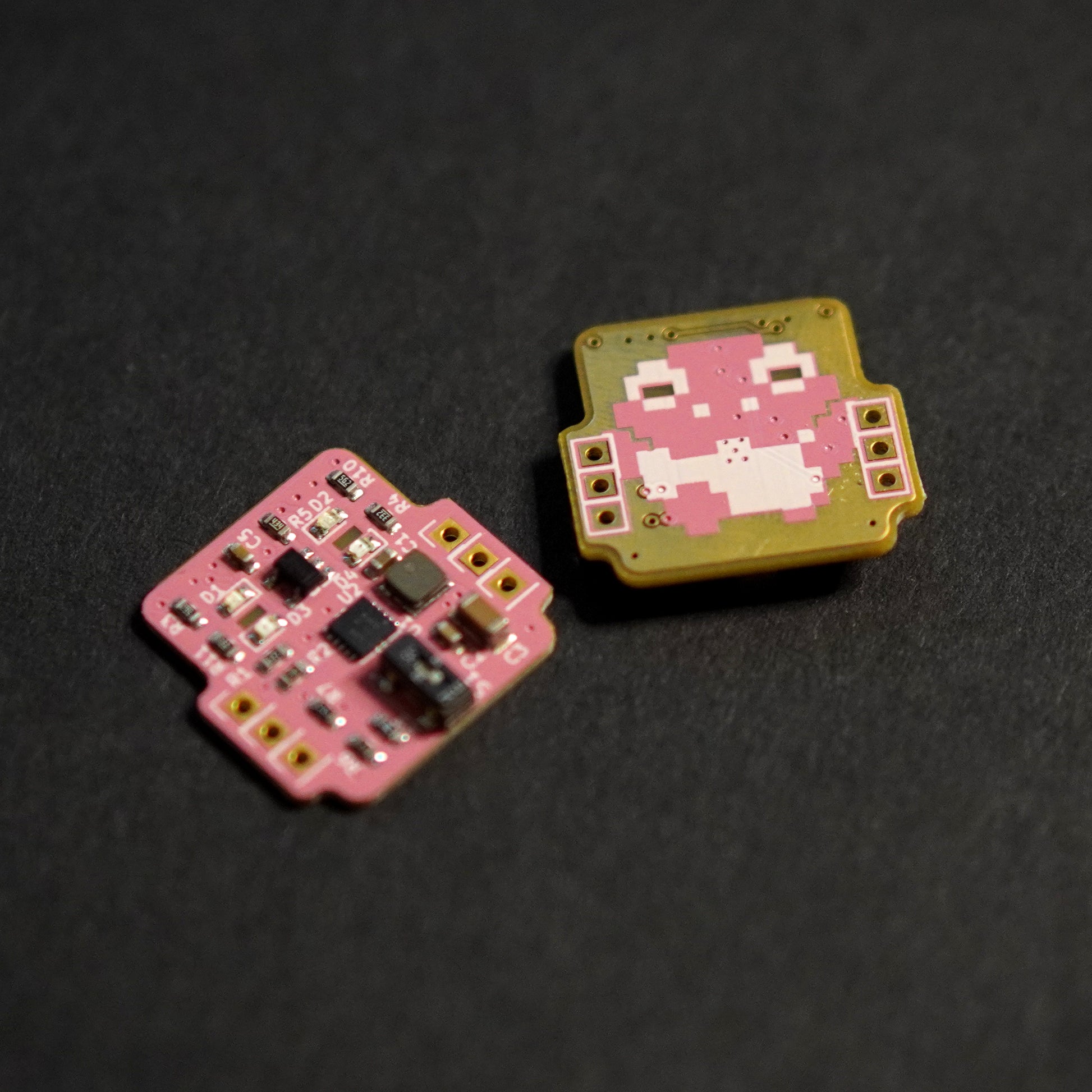

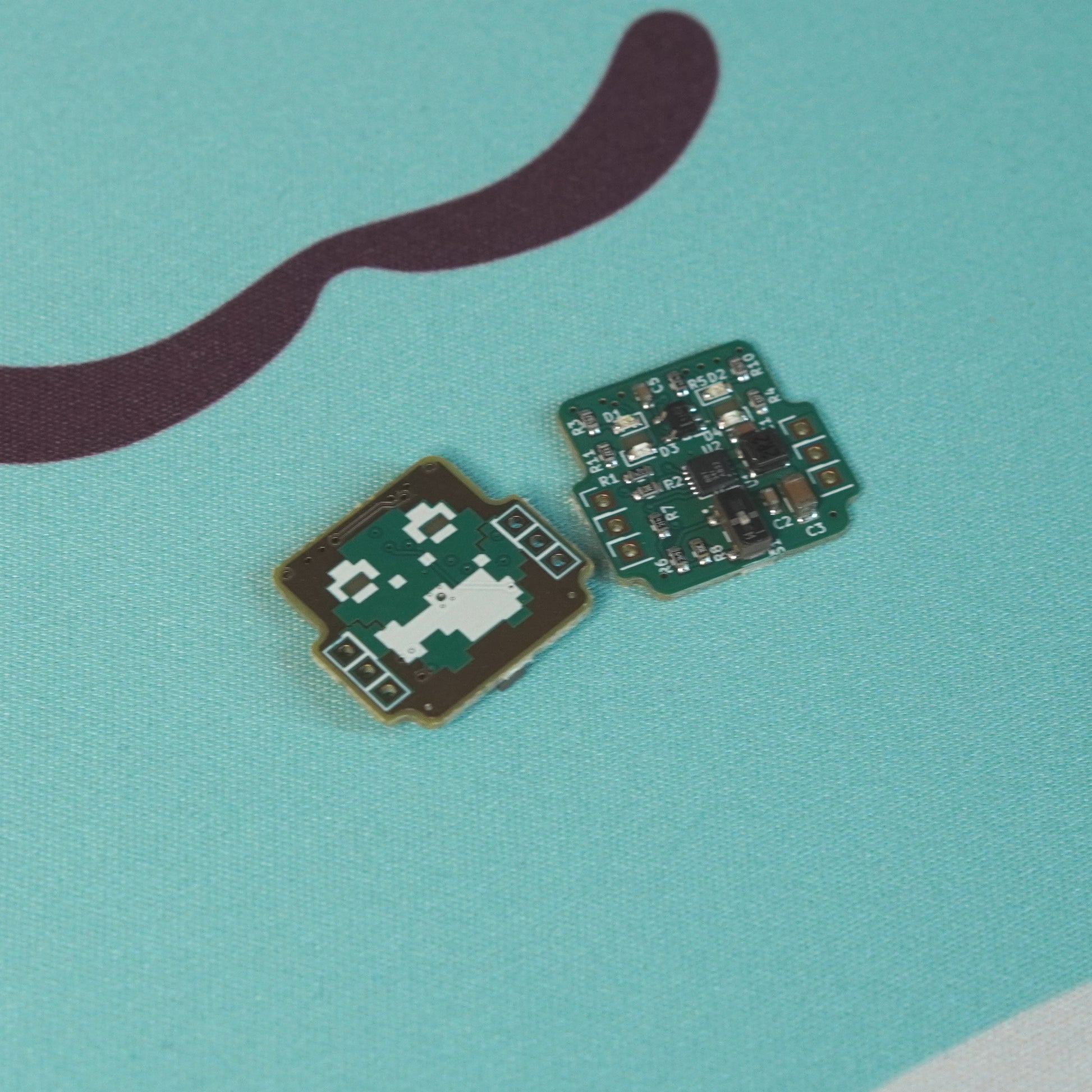

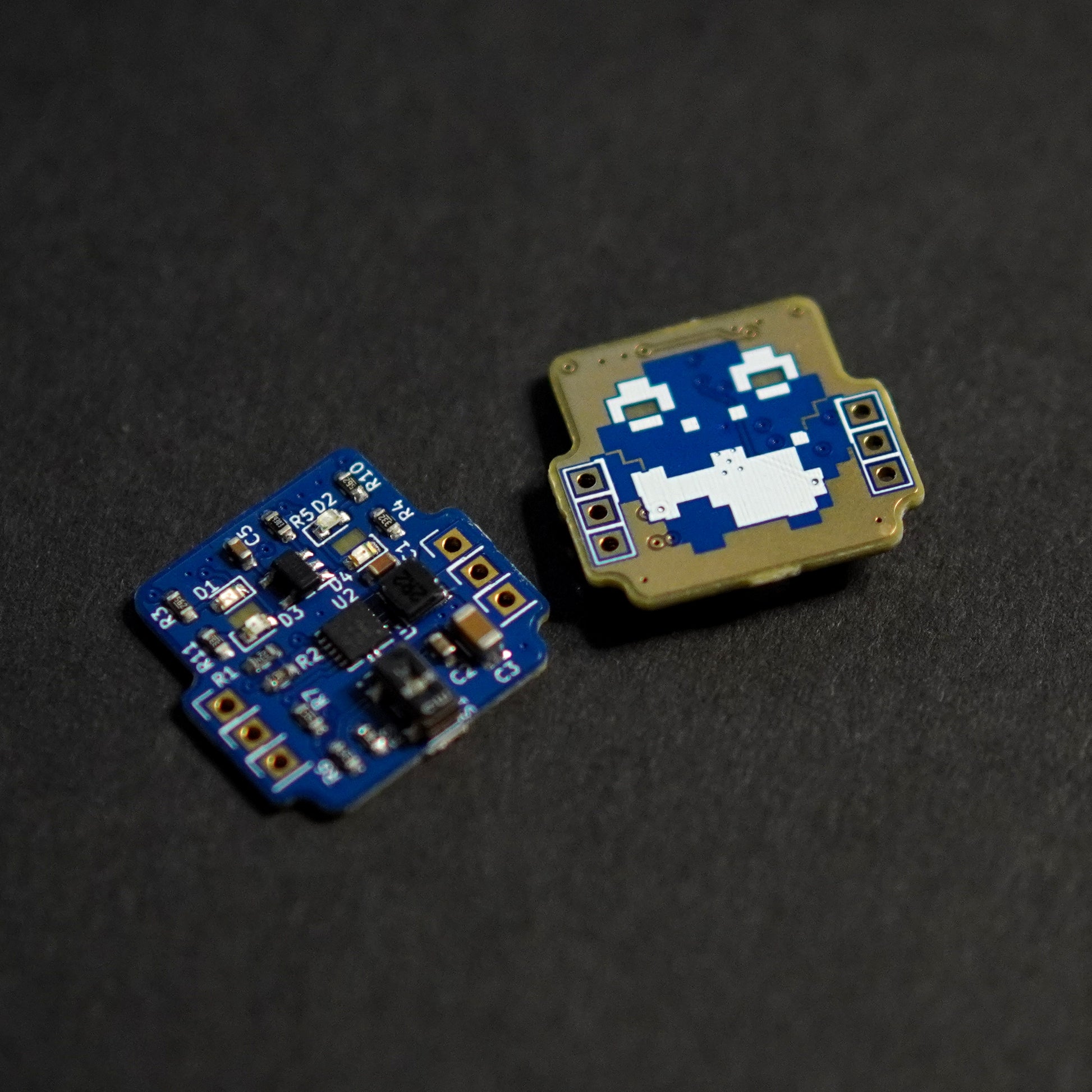

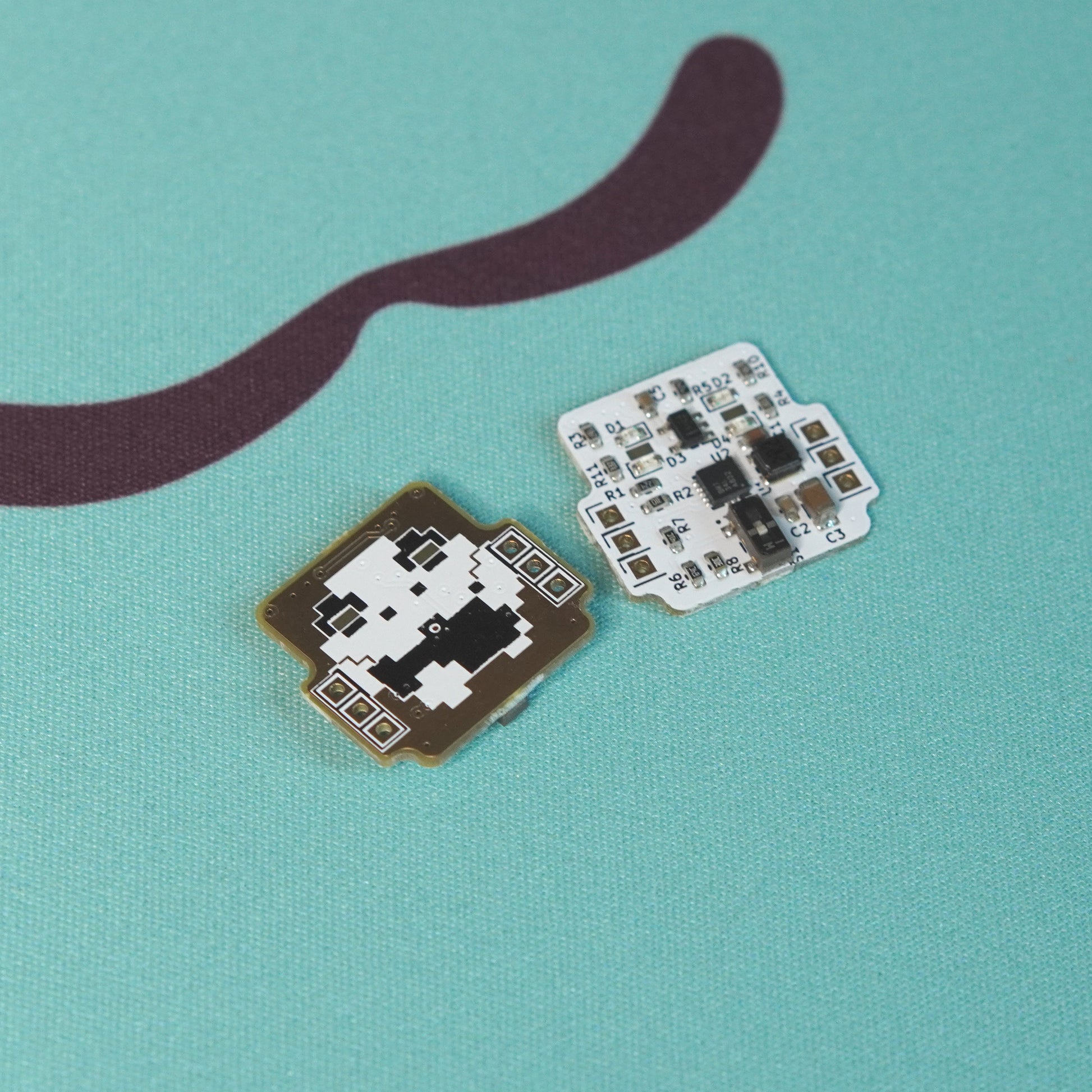

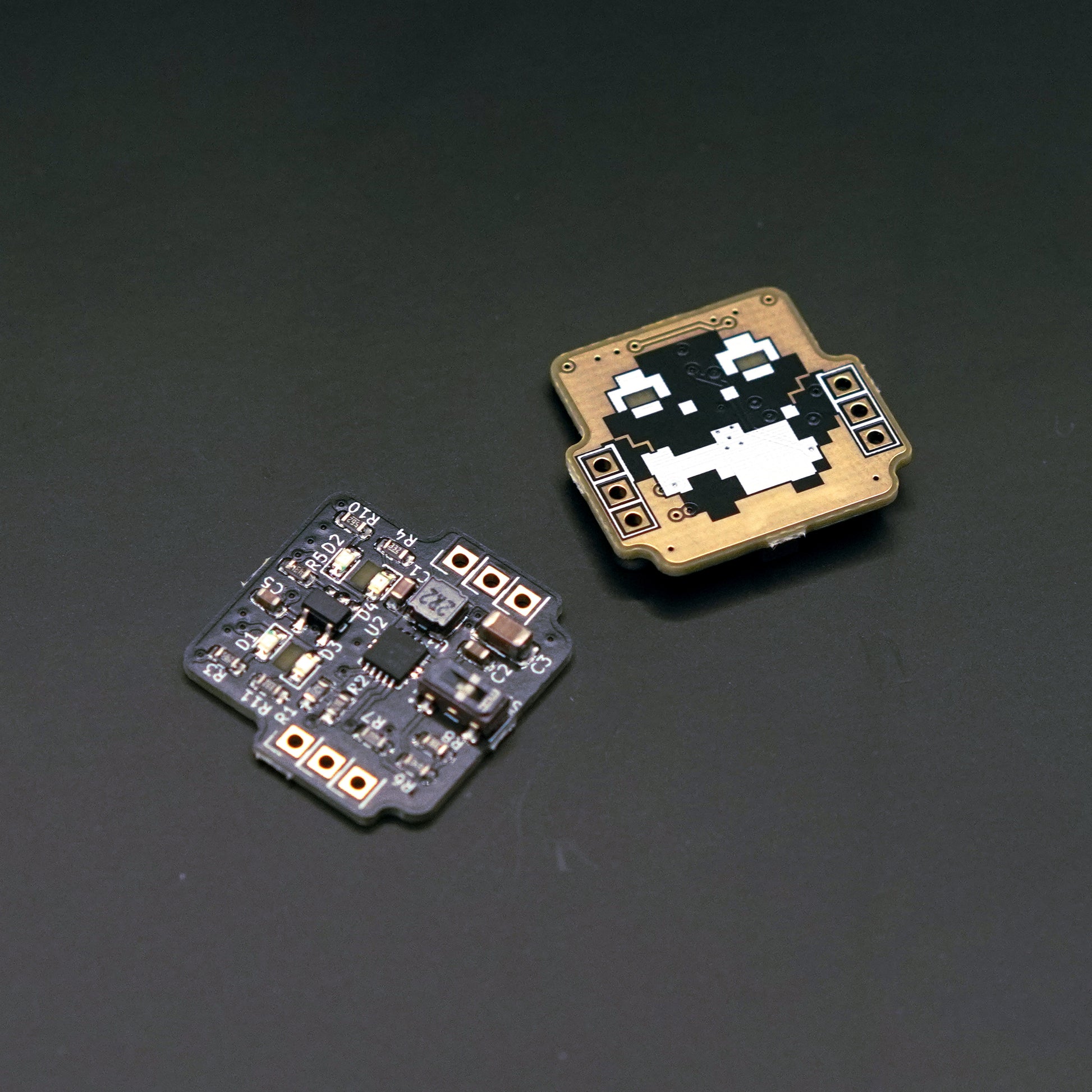

The Frogulator is a replacement DC regulator for the Game Boy Color, with 100% more frog! Works well in conjunction with my other GBC/MGB mods. Please carefully read features and notes below!
Kit includes:
- Frogulator
- Header pins
Video with installation instructions can be found here: https://youtu.be/vh3eVYYDOCo
Features:
- Generates 5V rail used by system and popular backlit screen kits.

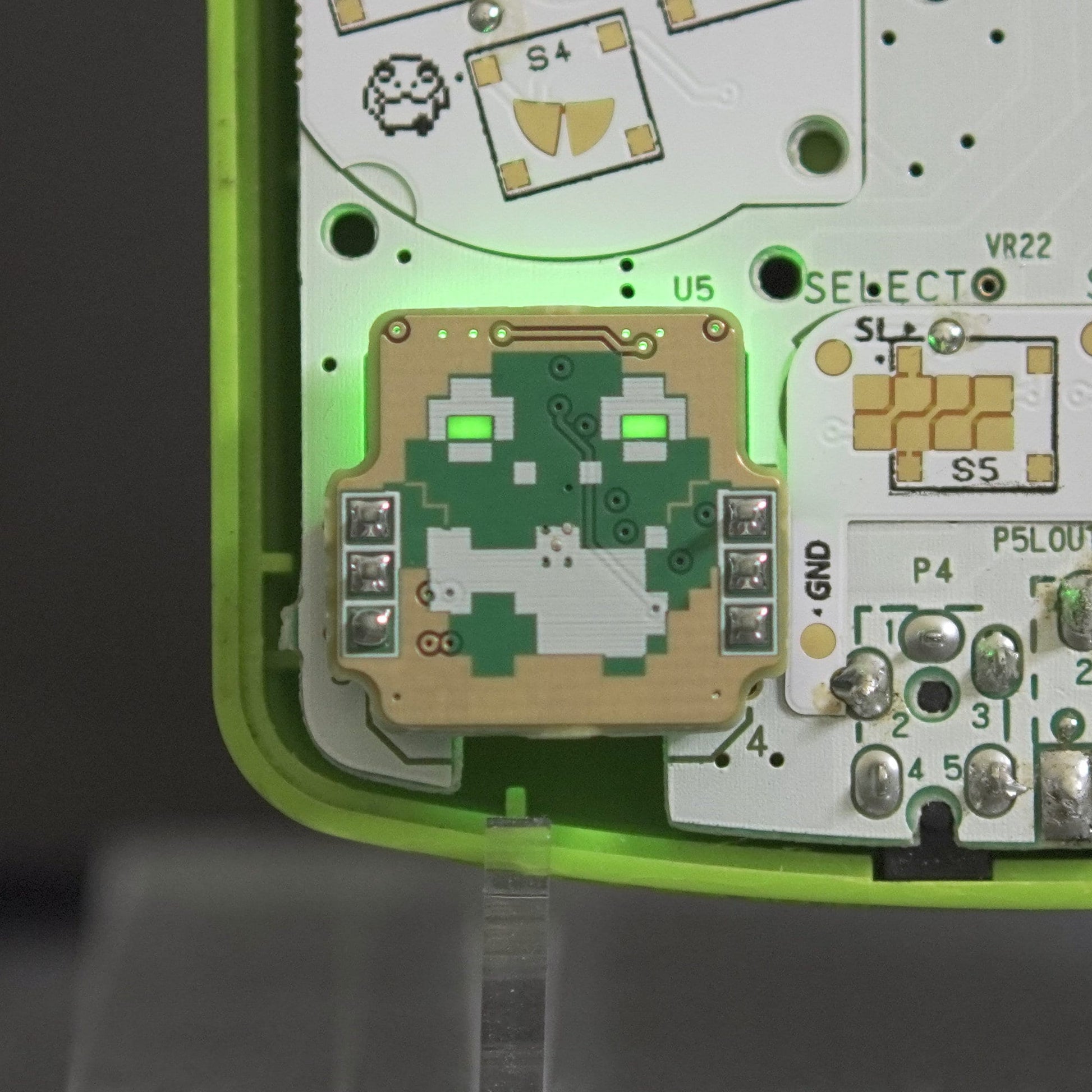

- Built in battery indicator. Frog eyes go from green to red when batteries are almost spent.
- Battery indicator can be switched between NiMH and LiPo mode using switch on back. Stripe on switch corresponds to NiMH mode.
- Works with both the Game Boy Color and Game Boy Pocket when using an aftermarket backlit screen.
- Great choice for Pocket Color/PoCo/MGBC builds when paired with OSD IPS kit.
Notes:
- Header pins are not pre-soldered, to protect the Frogulator in shipping.
- Does NOT work with OEM screens, including those that are backlit/biverted.
- Efficiency depends on screen kit used. See "Tested Screen Kits" below.
- Battery indicator is tuned for LiPo and NiMH rechargeable AA batteries. Use in a Pocket with AAA batteries will result in low battery indicator showing for longer.
- When used in a Game Boy Pocket with the FunnyPlaying IPS kit, brightness control will not work.
Tested Screen Kits:

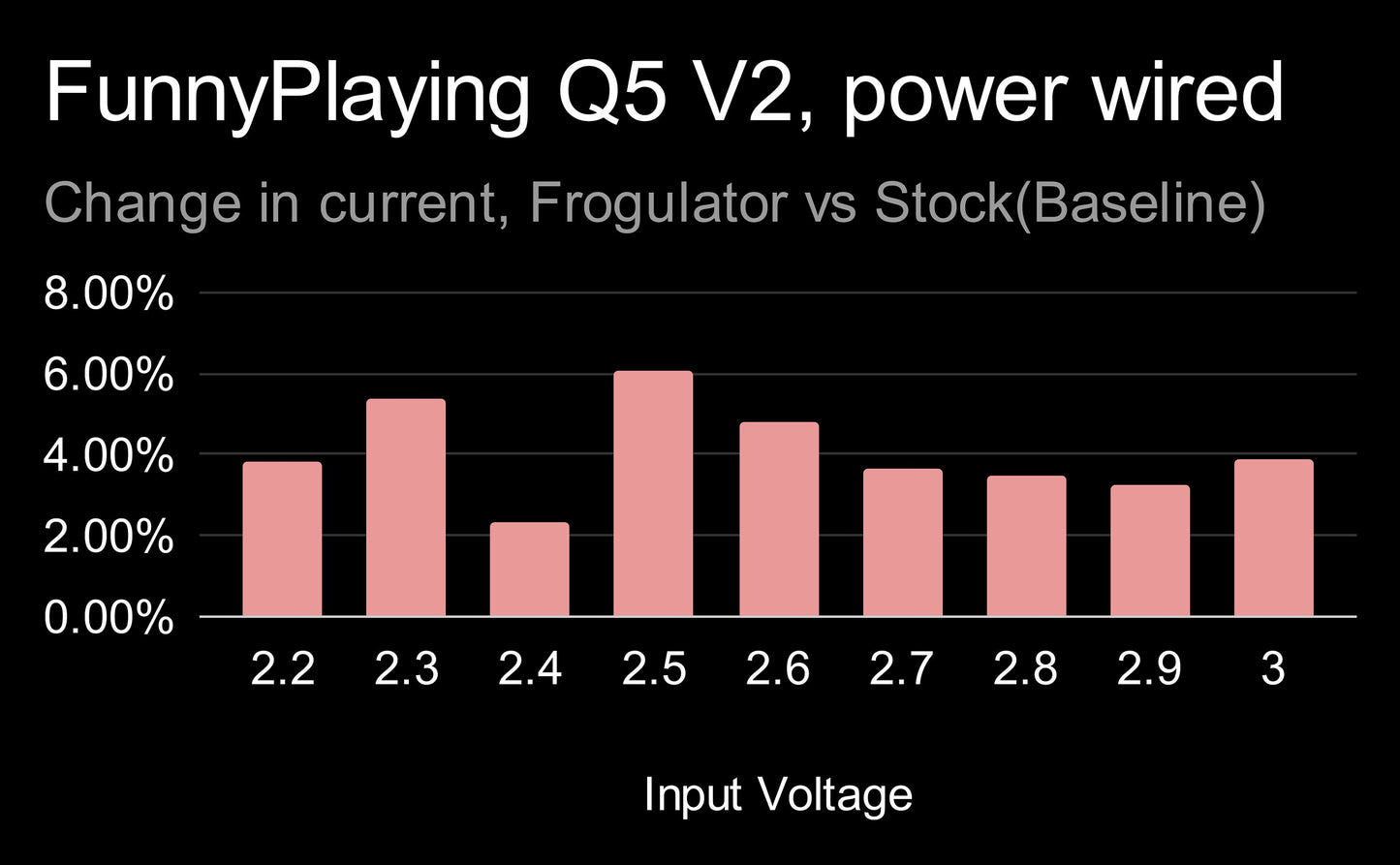

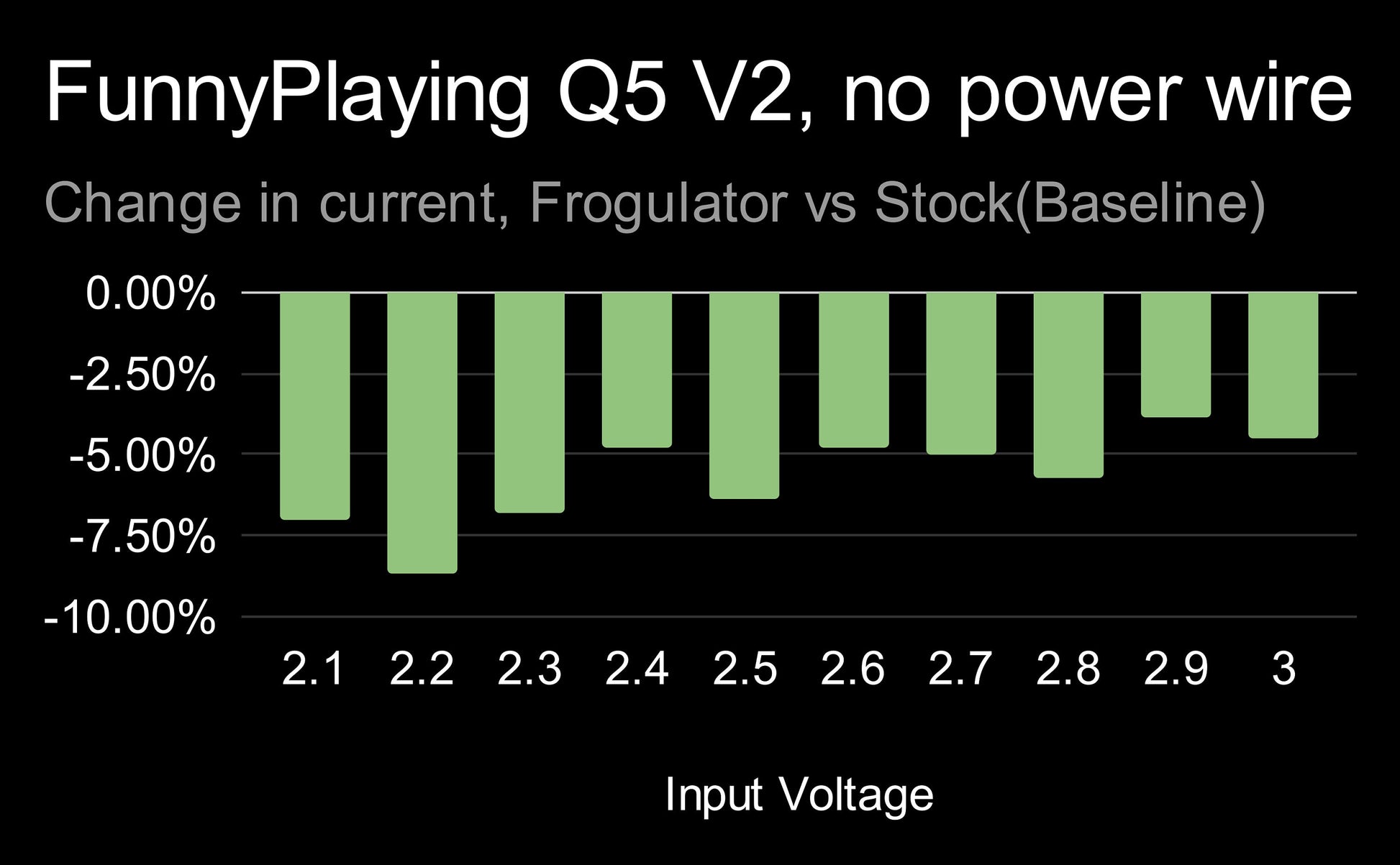

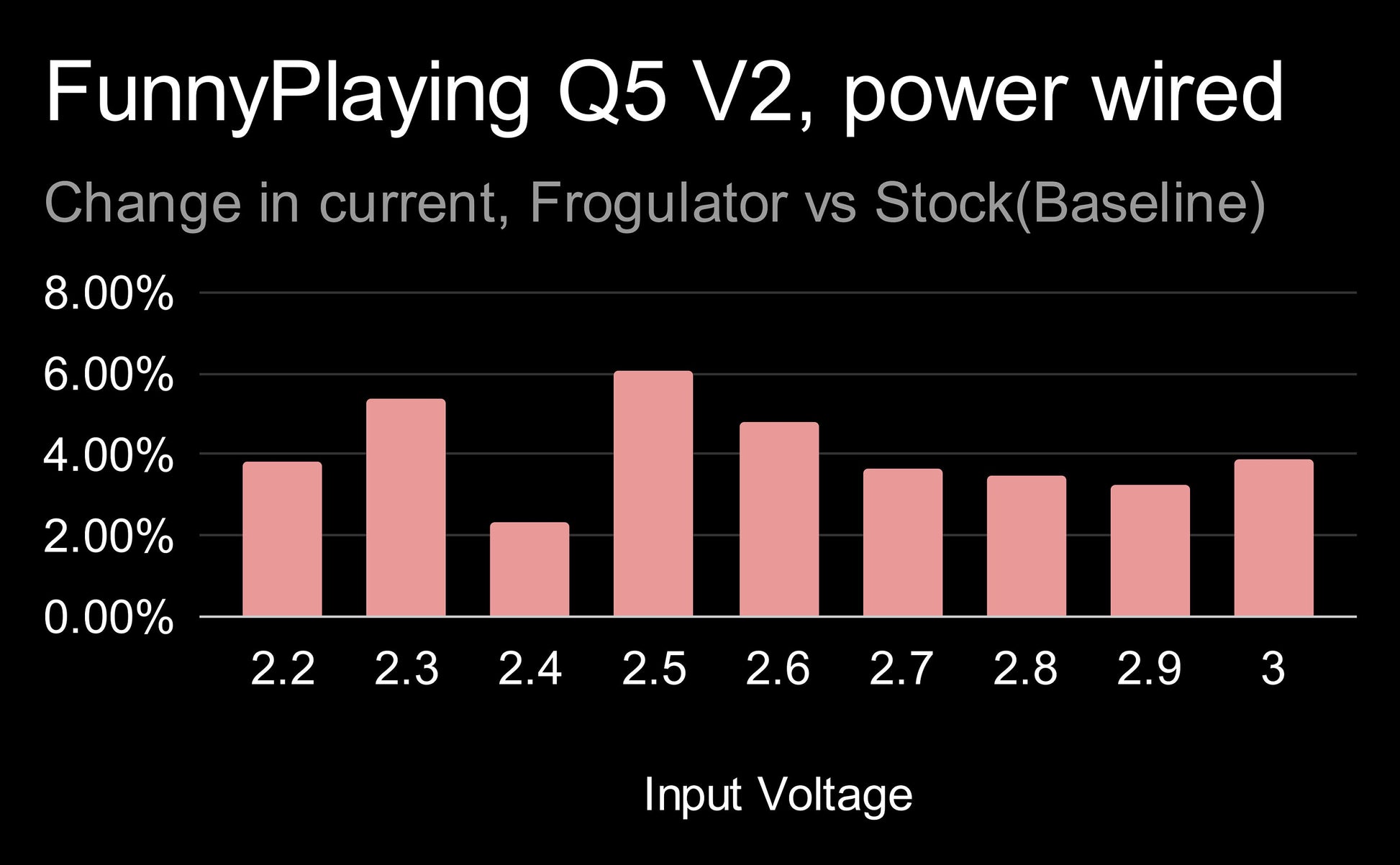

- FunnyPlaying GBC Retro Pixel 2.0. Efficiency with this kit depends on whether or not the PWR wire is connected on the screen ribbon(ribbon v2.6+ only). See charts in images.

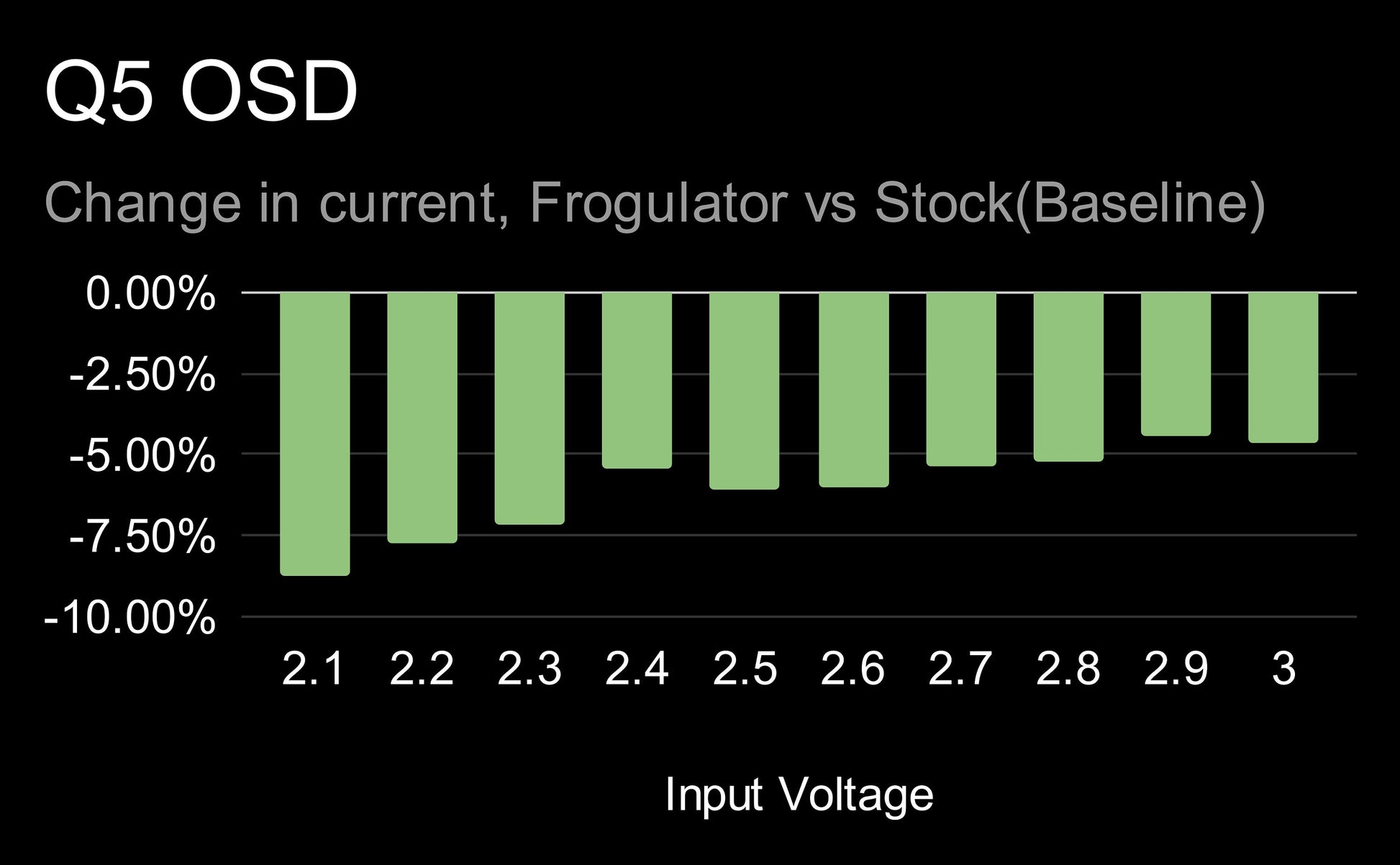

- GBC Q5 OSD IPS. Frogulator is more efficient than stock regulator. See chart in images.
- Cloud Game Store 2.45" Backlit LCD. Efficiency not tested.
- Other CGS kits should work, but are currently untested.
All USA purchases include free tracked shipping. International orders below $49 will be untracked.
